Analog High-Pressure Electric Pump

Analog High Pressure Electric Air Pump for Boats, Rafts, Kayaks and SUPs.

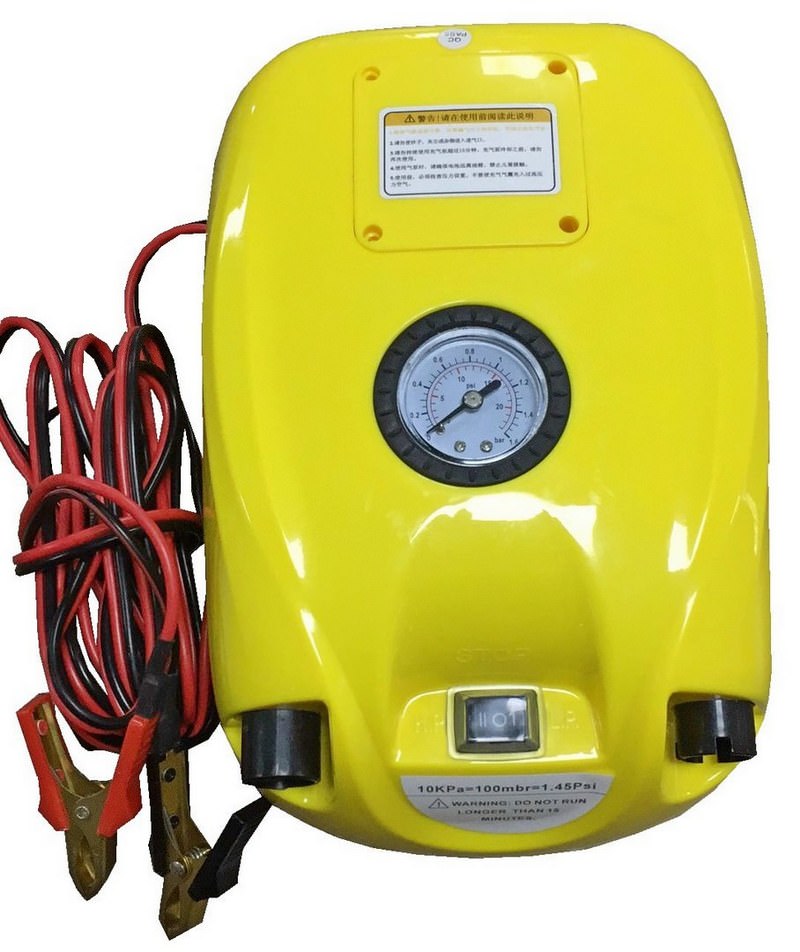

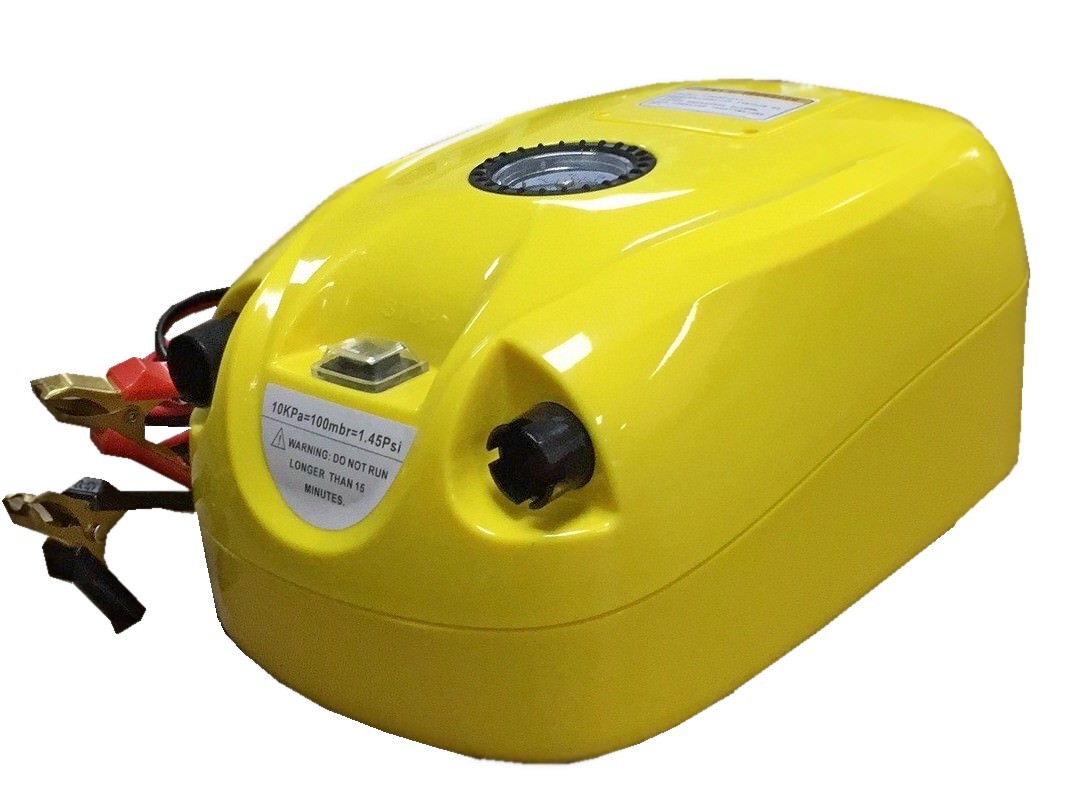

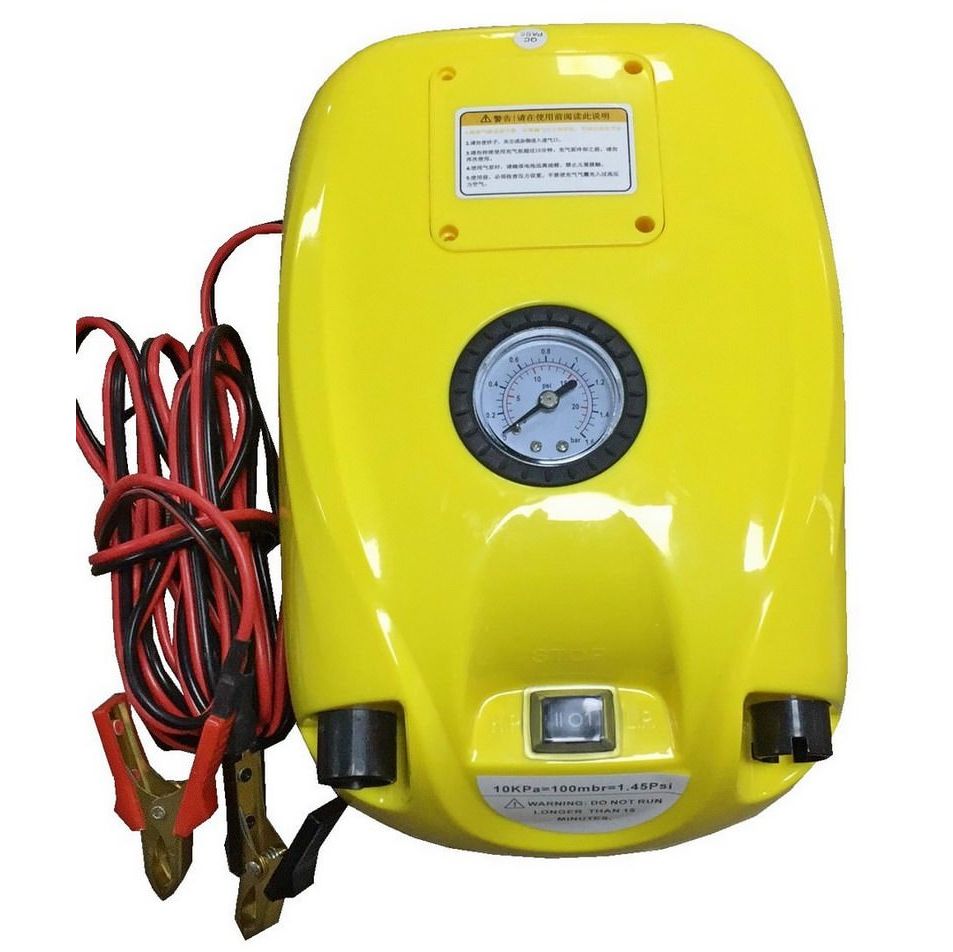

The GP80 high-pressure analog air pump is designed for use with an external 12V power source, such as a 12V car battery or a 12V 7Ah or larger external battery. Its simple design includes manual shutoff and offers an affordable solution for inflating boats, rafts, kayaks, and SUP paddle boards with ease.

To operate, press the power button to initiate inflation and monitor the pressure on the built-in analog gauge. Once the desired pressure is reached, press the power button again to stop the pump. The user must manually switch between the fast fan inflation mode and the high-pressure piston pump mode.

Please note, this pump does not feature automatic shutoff or electronic pressure sensors. Users must monitor the pressure gauge, manually switch between low and high pressure modes, and turn off the pump when necessary. The straightforward design results in fewer parts, increasing reliability.

The built-in pressure gauge activates only during the second, high-pressure stage of inflation and does not display readings during the initial fast inflation stage.

Analog Electric Air Pump is perfect product for:

• Inflatable boats.
• Inflatable rafts.
• Inflatable kayaks.
• Drop-stitch high-pressure air floors.
• Inflatable stand up paddle boards.
• Inflatable fenders, and many more inflatable products...

Optional battery:

Internal battery NOT included with this electric pump model. This pump can be used with regular car battery, by opening hood, and connecting gator clips to battery terminals. Red to (+), Black to (-) .Or, pump can be used with a portable 12V 7Ah batteries that are sold on EBay along with wall charger. Batteries starting at $17. And, that is same battery that is inside our more expensive GP80BD pump. Sealed 12V 7Ah Lead Acid Batteries and Wall Chargers are widely available on Internet. Battery fit nicely inside pump pouch. Just remove battery from pouch and connect gator clips to it to run pump.

Specifications:

• High-Speed fan and High-Pressure piston pump.
• Manual stop when chosen pressure is reached.
• Reliable design to reduce wear.
• Gator clips for quick connection to the car battery.
• All necessary adapters are included for pushpin type valves.
• Warranty 90 days.

Without a high-pressure electric inflator, you'd have to use a hand pump for around 15-20 minutes, under the hot sun, which might not be exactly idea of fun. With this magic air pump, you will be ready to roll in under 10 minutes with no effort at all.

All high-pressure air pumps now come equipped with a set of generic plastic adapters designed to fit most of air valves on a market and specialized valve adapter designed to fit Saturn's valves. Choose correct adapter that will fit nicely into air valve, and will press pushpin down when inserted for proper inflation.

How 2 stage pump works:

The pump is equipped with two separate inflators within a single unit: a high-volume pump for rapid inflation (Stage 1) and a piston pump for high pressure inflation (Stage 2). Begin by using Stage 1 to quickly fill the chamber of your inflatable. Once Stage 1 can no longer add air, switch to Stage 2 to complete the inflation to the desired high pressure. Continuously monitor the pressure gauge and manually turn off Stage 2 once the target pressure is reached. Note that the pump does not automatically switch between stages nor does it automatically shut off upon reaching the desired pressure. Monitoring the pressure gauge is crucial to prevent over-inflation.

Important warnings about High Pressure Analog Electric Pump:

• CONNECT EPUMP ONLY TO FULLY CHARGED 12V BATTERY!
• MAKE SURE VALVE PUSHPIN IS PRESSED DOWN WITH EPUMP ADAPTER.
• DO NOT RUN EPUMP ON HIGH PRESSURE FOR LONGER THEN 15 MINUTES.
• DO NOT DROP EPUMP ON HARD SURFACE OR SUBMERGE INTO THE WATER.
• DO NOT LET SAND, DUST OR DEBRIS ENTER INSIDE AIR INTAKE.
• DO NOT ATTACH ADDITIONAL ADAPTERS BETWEEN HOSE AND EPUMP.
• MAKE SURE AIR IS NOT ESCAPING AROUND VALVE ADAPTER OR HOSE.
• DO NOT OPERATE EPUMP IF IT IS HOT. LET IT COOL BEFORE USE.

Instructions for operation of High Pressure Analog Electric Pump:

AVERAGE AIR PRESSURE FOR INFLATABLES:

• BOAT TUBES: 20KPA (25KPA MAX)
• BOAT KEEL: 30KPA (40KPA MAX)
• BOAT FLOOR: 60KPA (70KPA MAX)
• iSUP BOARD: 70KPA (80KPA)
• Out of the several included valve adapters, you will need to find one that fits tightly inside your air valve. The correct adapter should have a small perpendicular plastic piece that goes inside across the tube or will have 2 small tabs. This perpendicular piece or tabs are designed to press on the pushpin inside the valve to open valve and allow air to be pumped inside boat chamber. Try different adaptors to see which one fit better and can firmly press on pushpin of your air valve.
• Before attaching the hose with the correct plastic valve adapter to your Saturn boat valve, please make sure that the pushpin inside the valve is in the upper, locked position. Air will not escape from a chamber when the pushpin is in the upper position.
• Correct valve adapter for Saturn, Mars and AM boats already pre-installed on a pump hose. To install into valve, press hard on valve adapter and rotate clockwise, for adapter to latch to valve's pushpin crest mount. Rubber seal on valve adapter must to compress to have adapter latched to the valve. If difficult to latch, remove seal from valve, and flip it over, with grove facing outward. Squeeze seal few times to make it softer.
• Insert the valve adapter connected to the electric pump hose into the air valve, so that the perpendicular piece or tabs presses the valve pushpin down, and unlocks the valve by letting air in. Once the chamber is full to capacity, you will quickly pull one end of the electric pump hose, and the air valve will automatically lock itself.
• Never inflate air valve that is locked. This will burn pump very quickly and will void warranty.
• Monitor gauge for air pressure, and turn off pump when set pressure is reached.

Customer's Video of Analog Electric Pump.

Notice that pressure gauge only shows pressure reading in 2nd, high pressure stage of pump.
