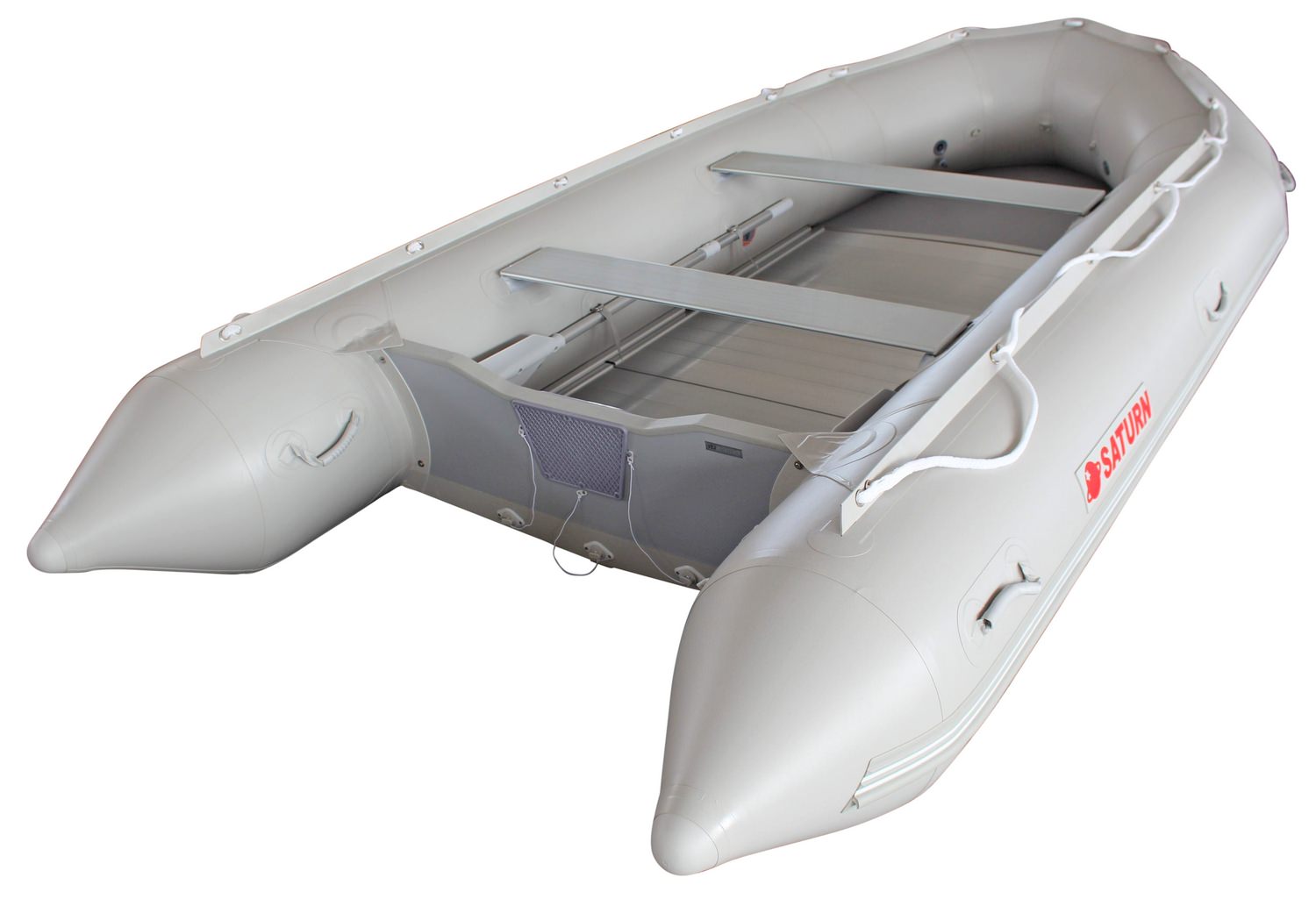

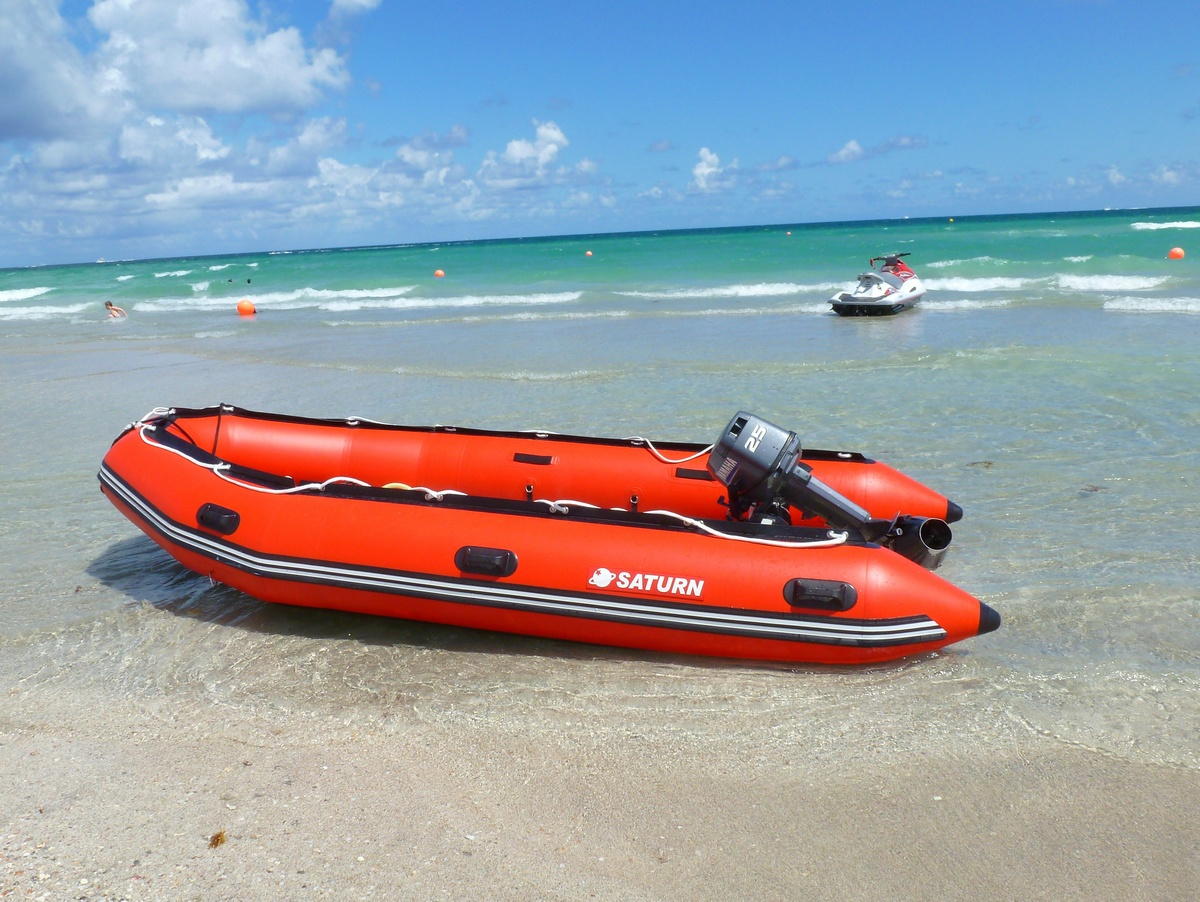

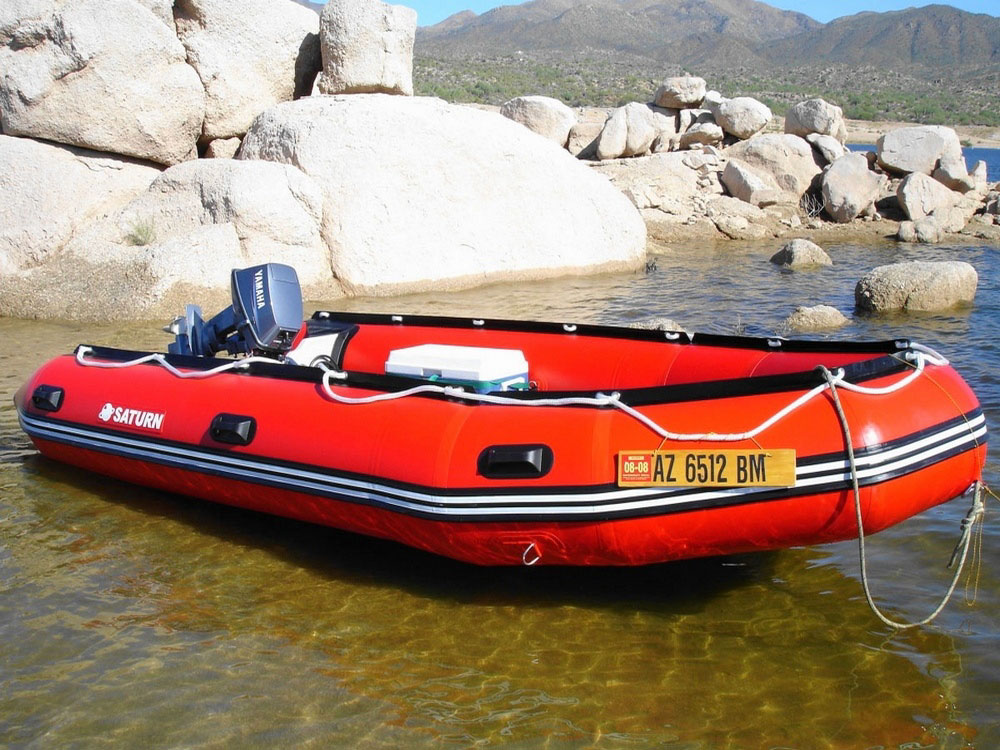

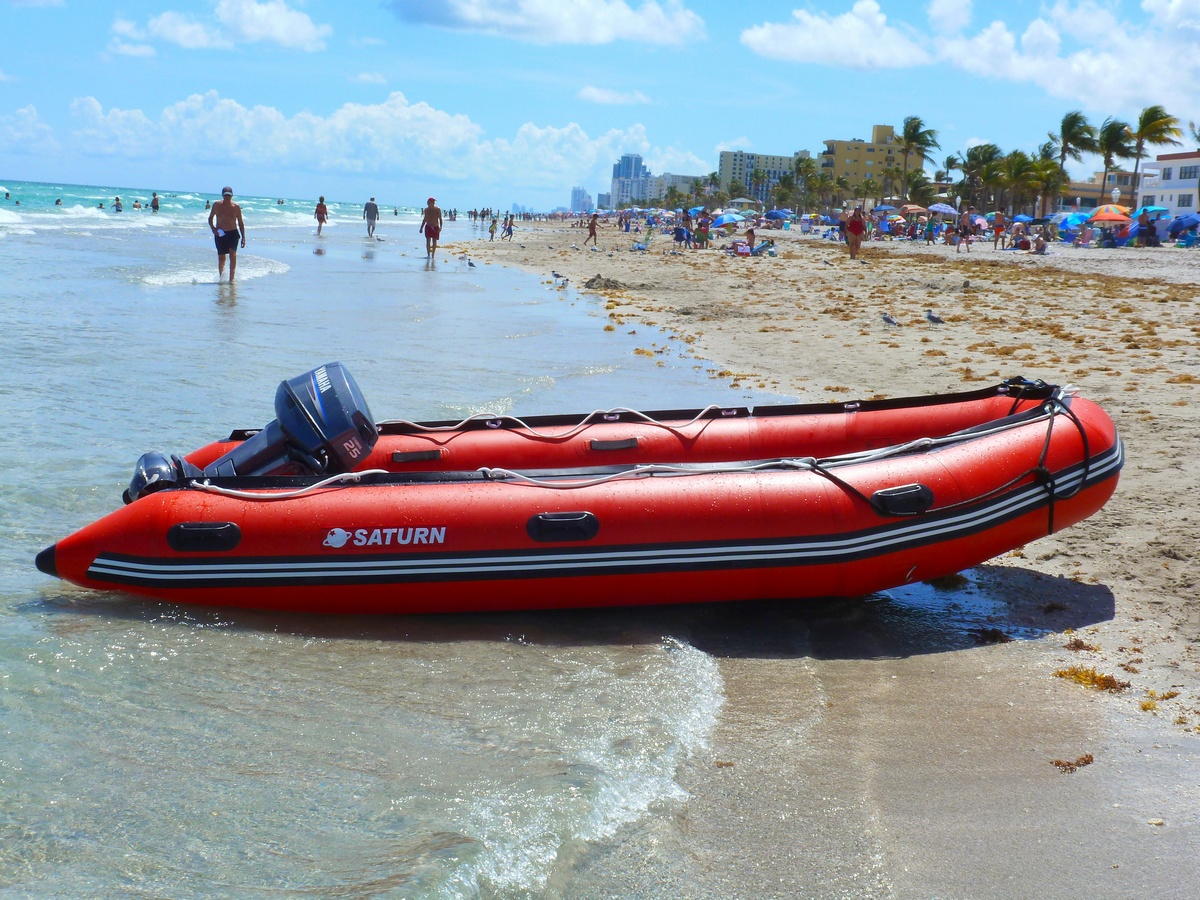

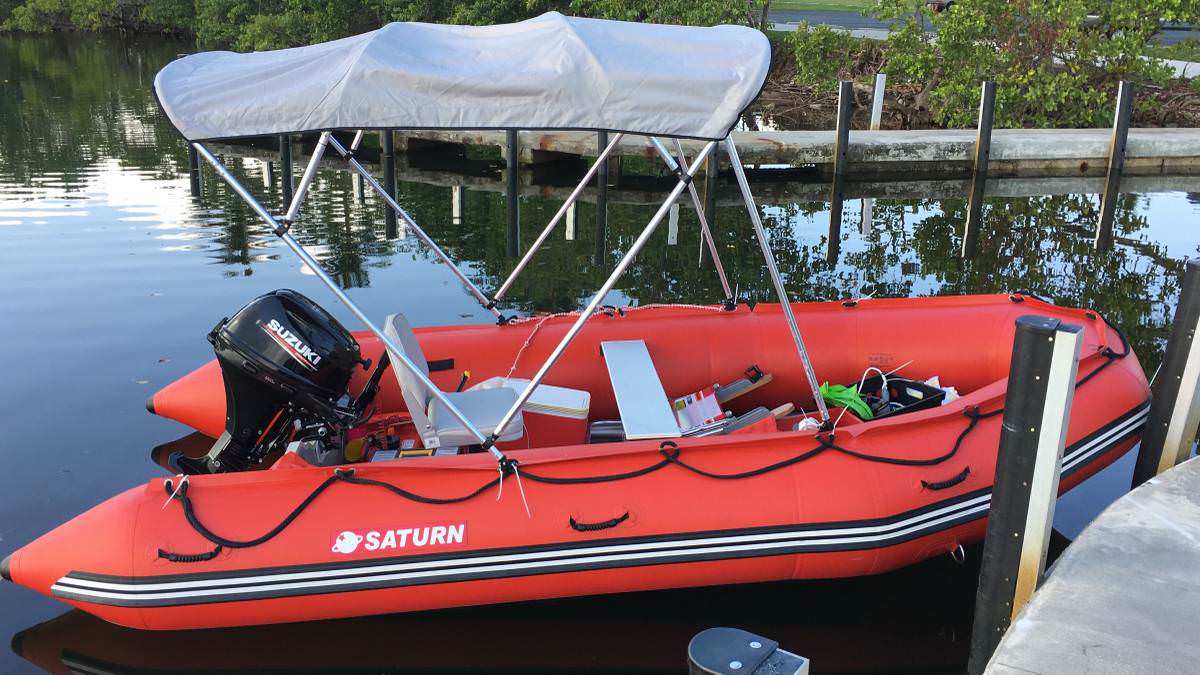

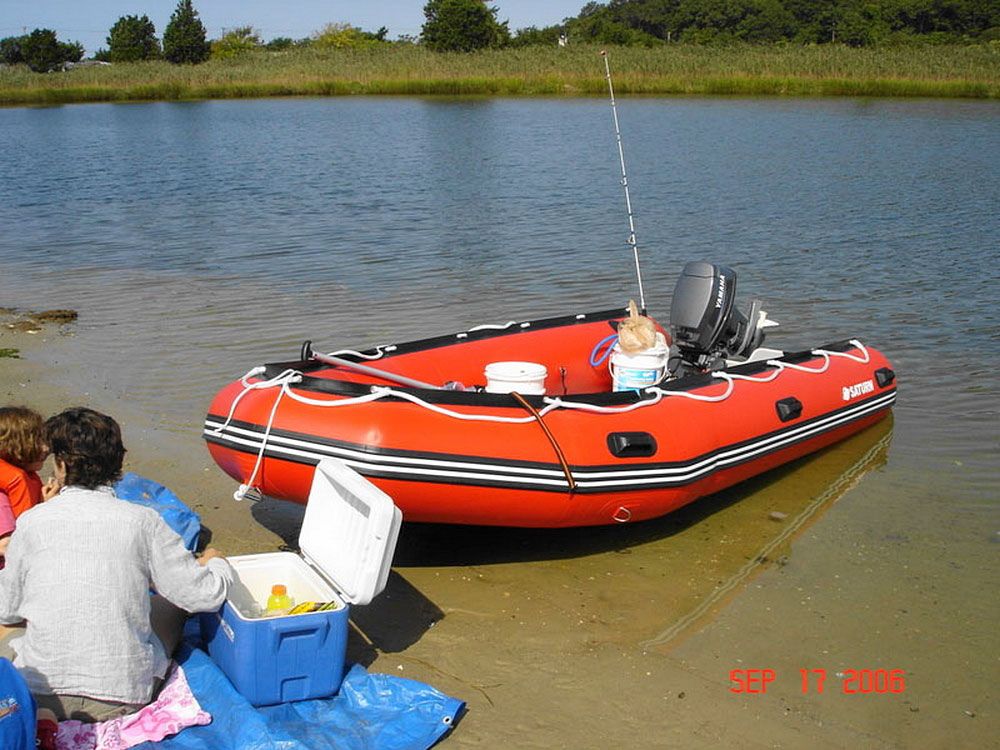

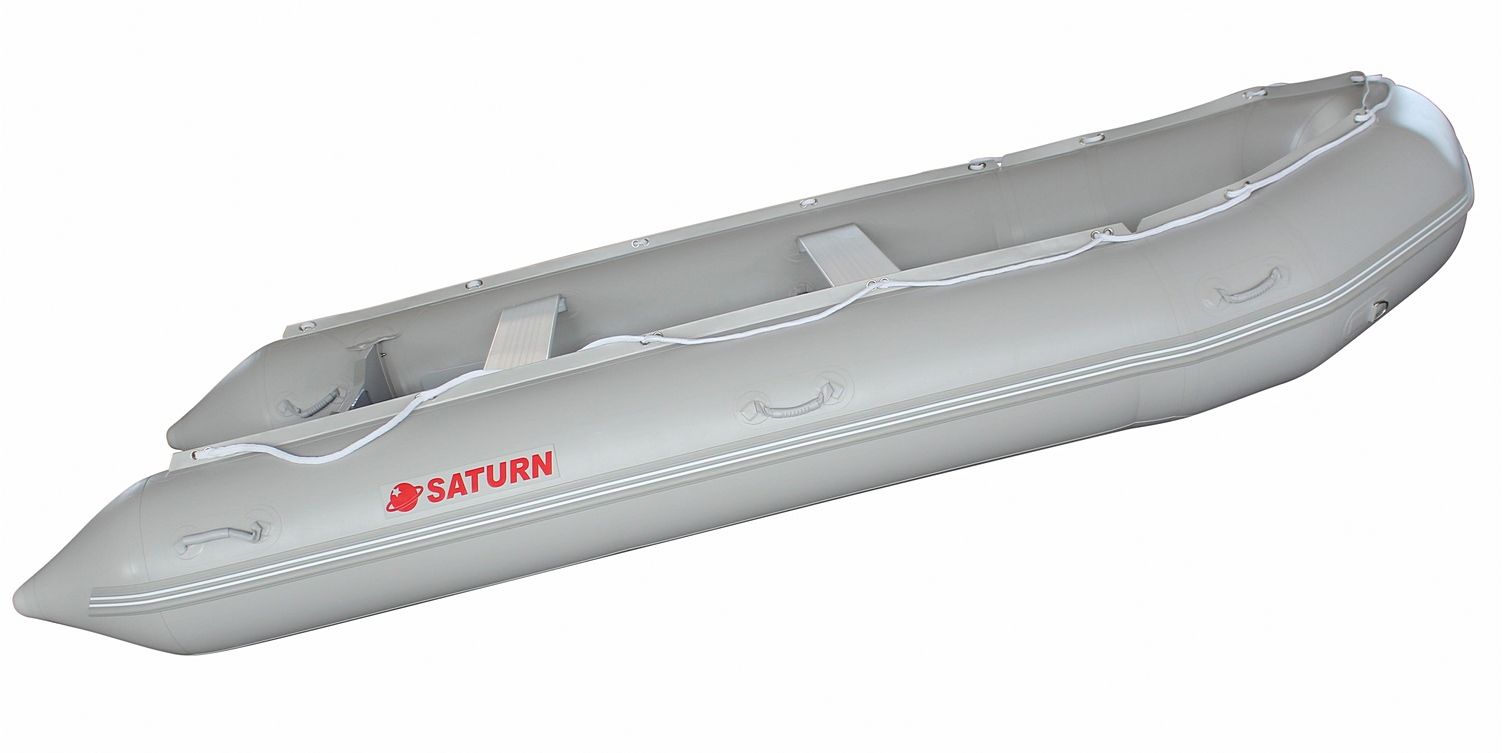

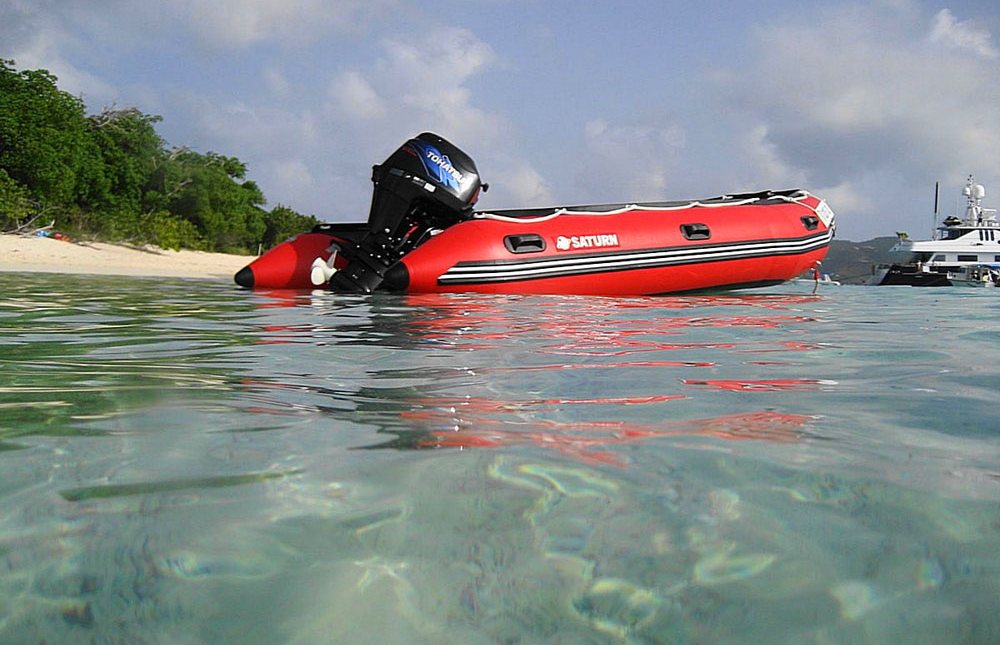

The 14 feet SD430 is a heavy-duty inflatable workboat, great for water rescue, diving or day trips.
New Model V3.0 - German Heytex PVC, Heat Welded Seams, Fiberglass Covered Transom, Premium Quality.
The SATURN SD430, measuring 14 feet, represents a robust inflatable workboat designed for versatile applications such as water rescue, diving operations, or leisure day trips. Introduced as the New Model V3.0, it boasts enhancements including the utilization of German Heytex PVC material, heat-welded seams, a fiberglass-covered transom, and overall premium construction quality.

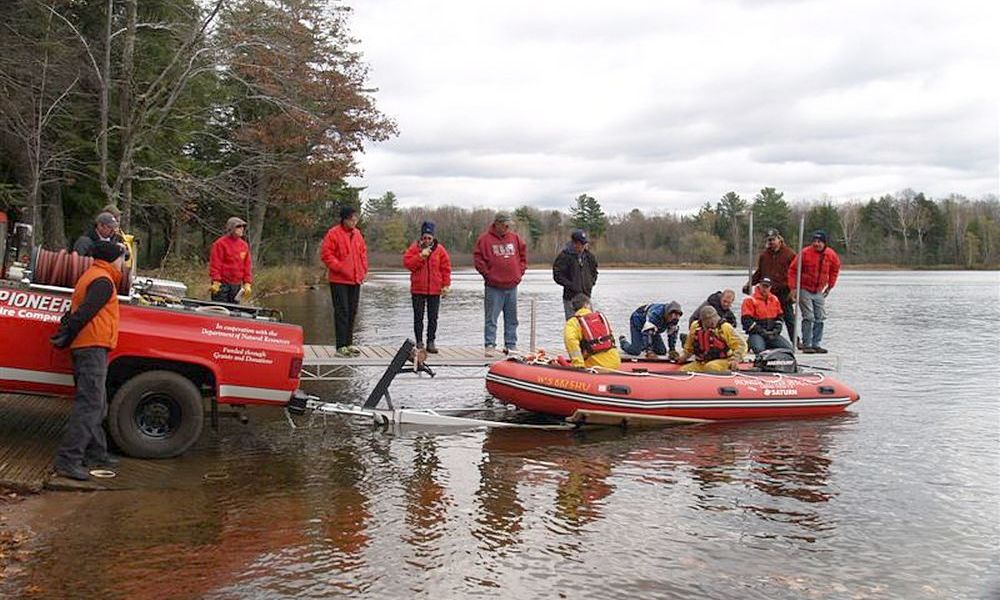

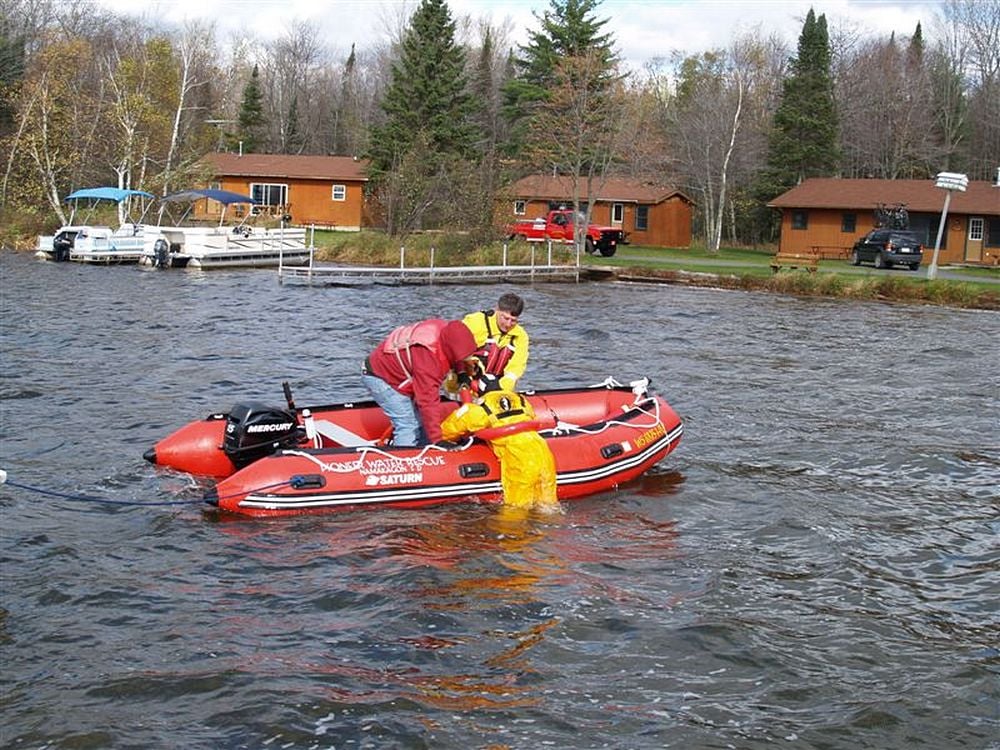

Noteworthy for its utilization in Fire Rescue and Emergency Departments nationwide, the SD430 distinguishes itself from its SD415 counterpart due to its larger dimensions, featuring 20" tubes and a wider interior. It also incorporates an aluminum floor rather than an air deck, resulting in a more spacious vessel overall.

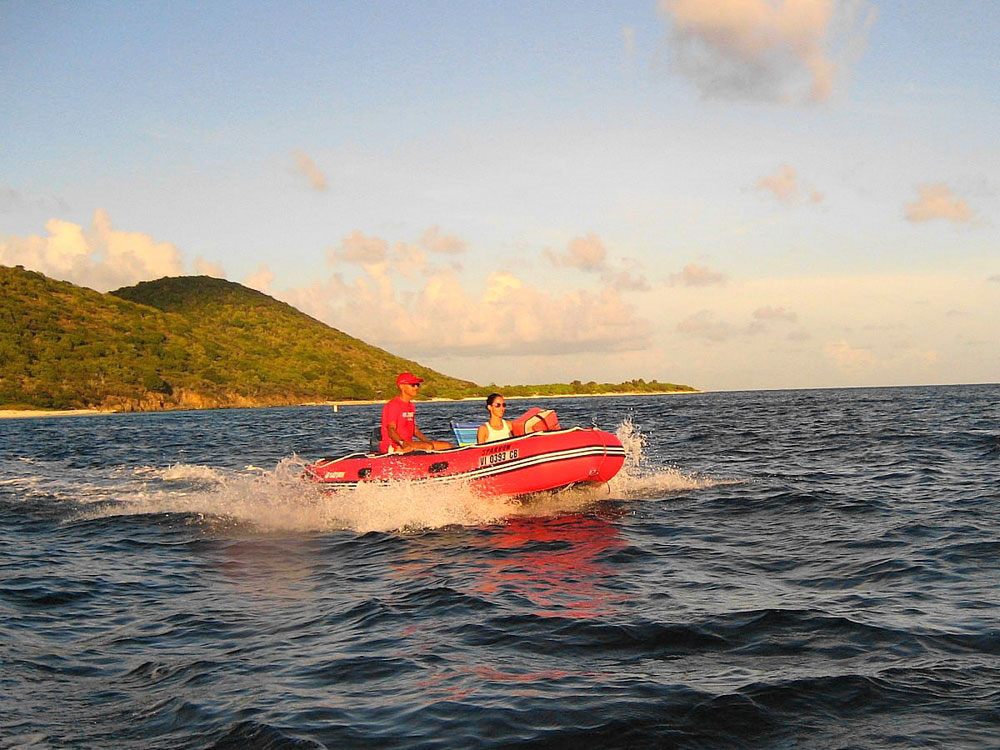

Constructed to accommodate up to 7 occupants, the SD430 is compatible with outboard motors of up to 40 HP, although it performs optimally with a 25 HP motor. Remarkably, even with a 15 HP outboard motor and only 2 passengers, the boat demonstrates smooth planing capabilities, as attested by customer feedback.
Technical specifications reveal the utilization of premium-grade materials, including 1100 denier German Heytex PVC fabric reinforced with polyester, offering exceptional resistance against tearing, tension, and abrasion. This material surpasses the durability of standard 1000 denier PVC fabrics utilized by competitors.
When deflated, the SD430 conveniently folds into a compact form, fitting into one large bag for the tubes and another large flat bag for the floor. Storage options include placement in the cargo space of an SUV or minivan or within a sizable closet in an apartment. For ease of transportation, the deflated and packed boat can be transported using a foldable hand cart. Moreover, the inflatable boat is equipped with removable dinghy wheels affixed to the transom for effortless transportation when inflated.
Additional protective features include double layers of fabric at the tube bottoms and a rub-strake protector along the keel, offering heightened defense against sharp rocks and abrasive surfaces. Furthermore, a safety valve is integrated to prevent over-inflation in the boat's chambers, ensuring operational safety.

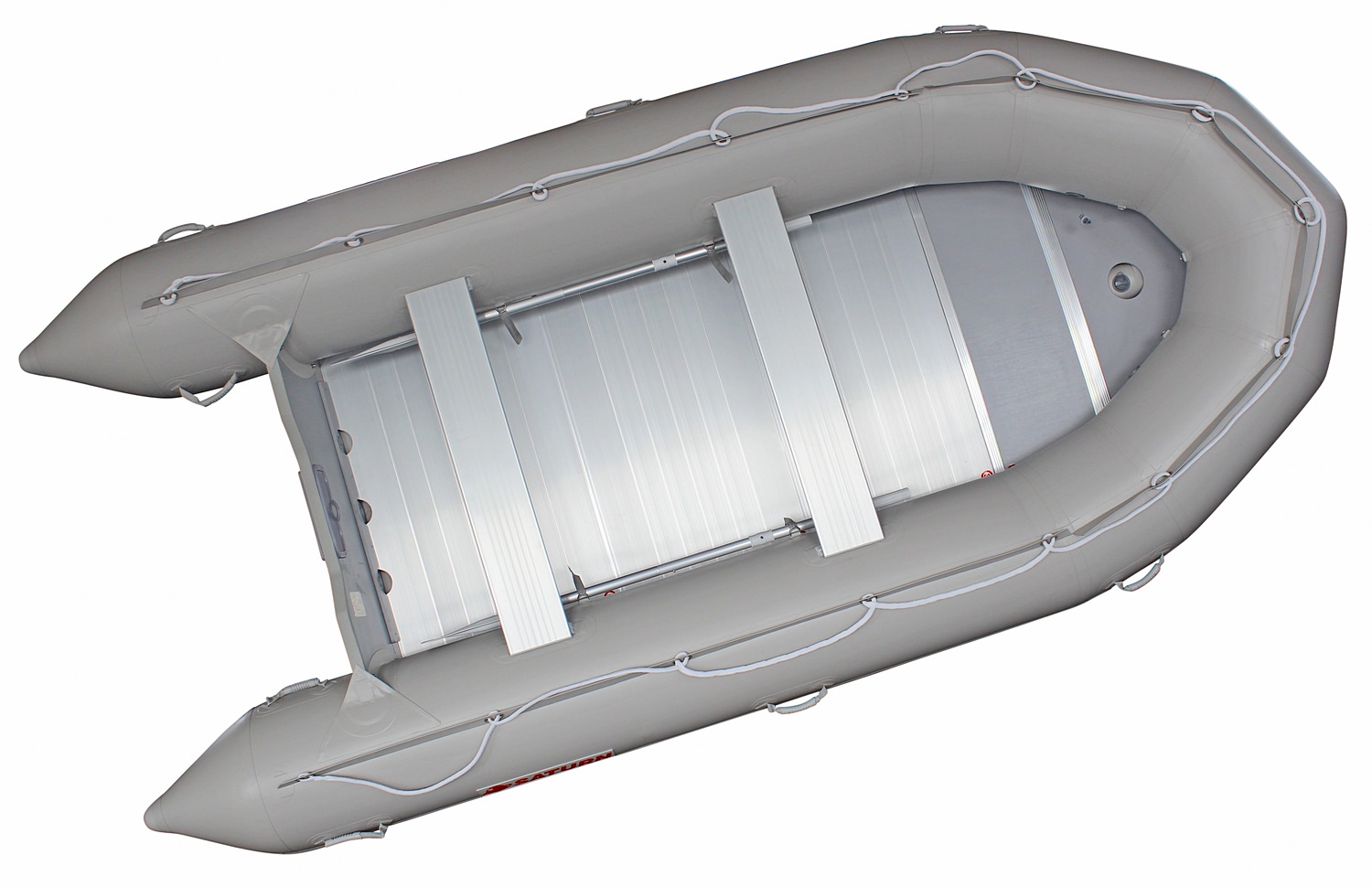

Saturn SD430 inflatable boat comes standard with a 5 section heavy-duty aluminum floor. Floor installation steps are here. Important information about aluminum floors below.

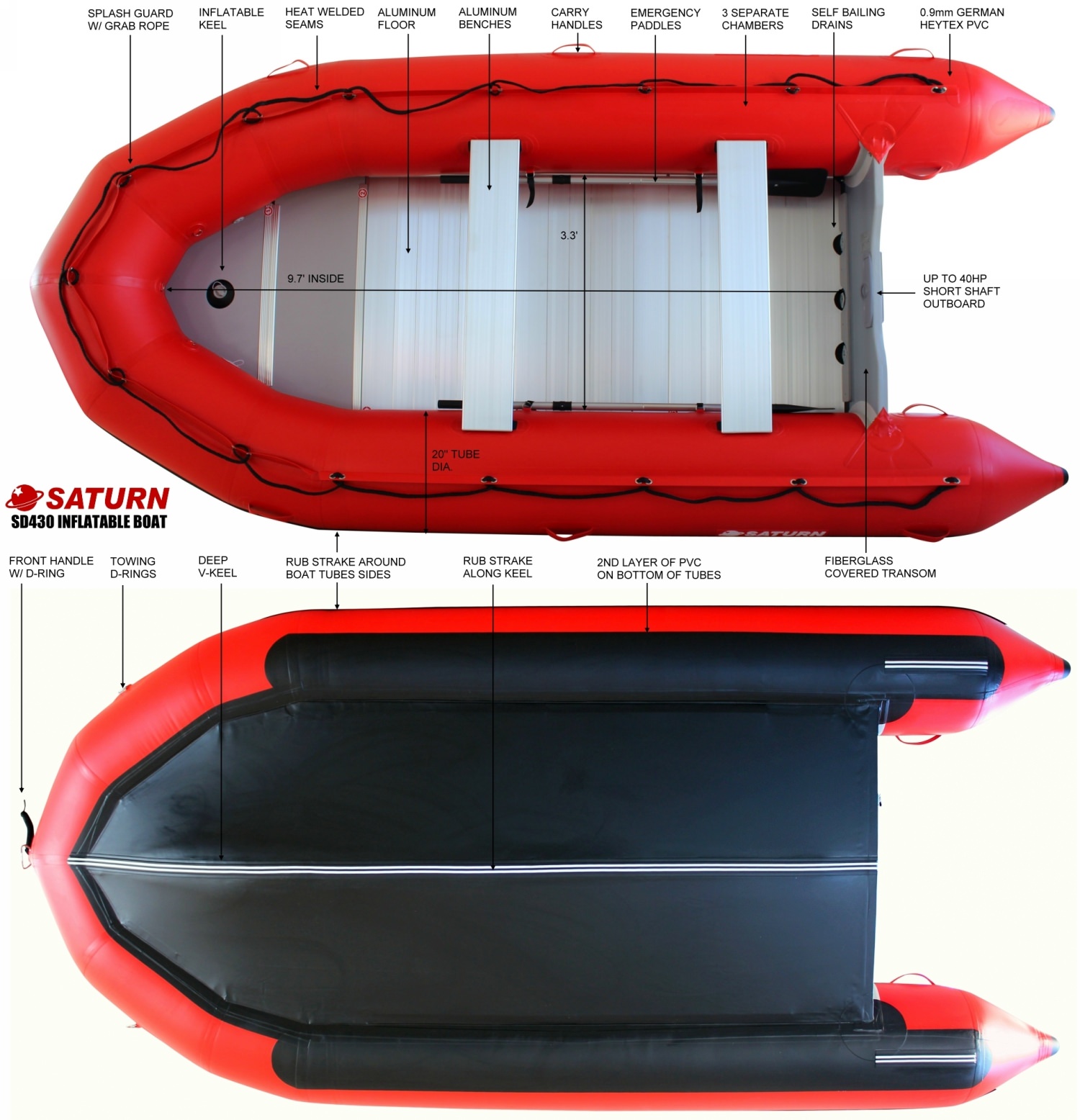

SATURN INFLATABLE BOAT SD430 FEATURES:
- All around rope grab line.
- Separate internal air chambers.
- One-way drain valve with plug.
- All around, durable rubber strike.
- Safety valve to prevent over inflation.
- Stainless steel D-rings for easy towing.
- Reliable flat air valves with pushpin design.
- Front bow D-ring with integral lifting handle.
- Spare rope for attaching anchor is included.
- Double layer of fabric at the bottom of tubes.
- Holds up to 6 persons maximum or 4 comfortably.
- Deep inflatable V-keel with a rub strake protector.
- Heavy-duty marine grade aluminum floor is included.

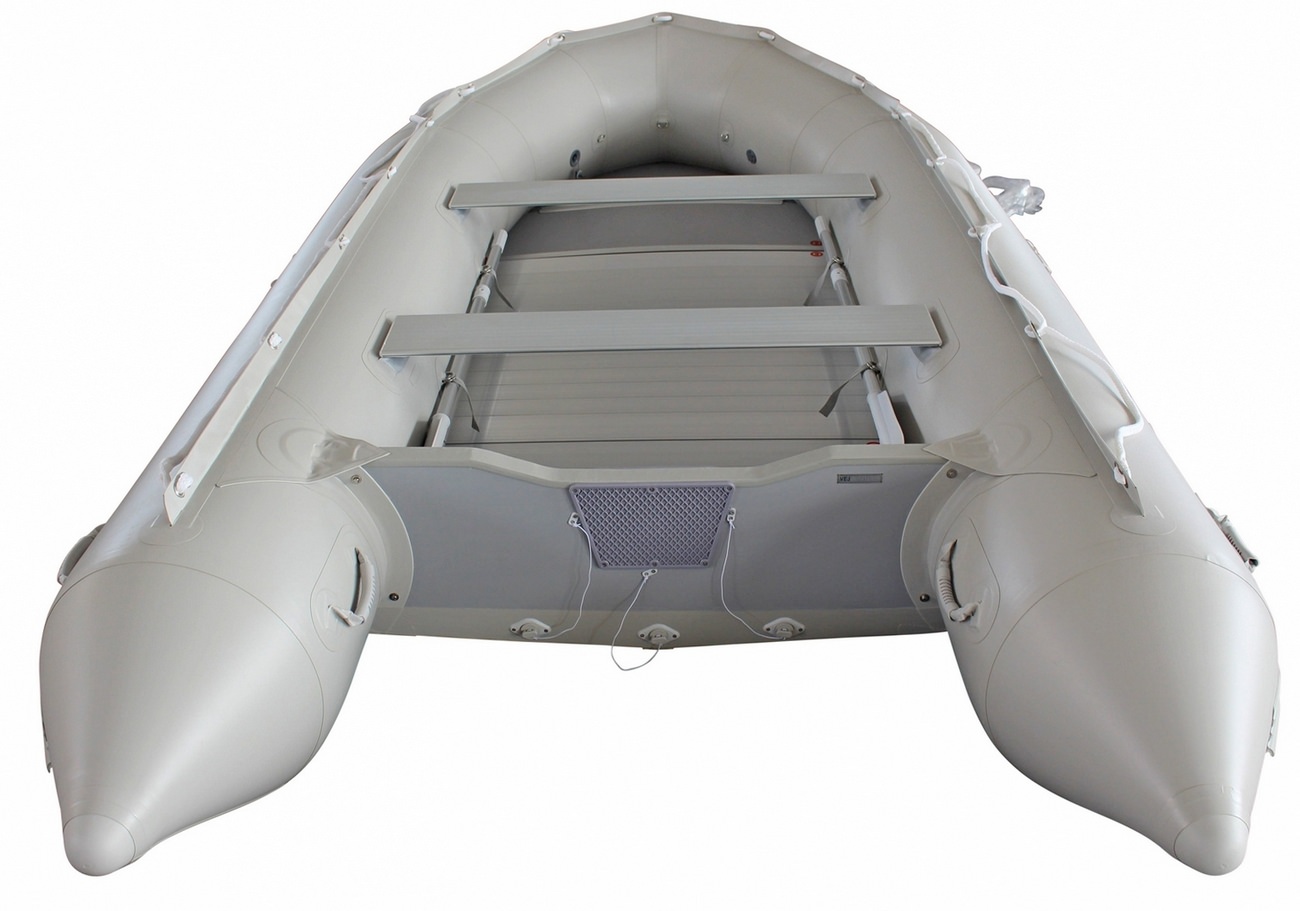

- Extra thick heavy-duty fiberglass reinforced plywood transom.
- Lightweight and strong removable aluminum seat benches.
- Free second bench is included when order is placed on-line!
- Equipment: T-paddles, repair kit, seat bench and carry bag.
- Free, complimentary generic high-volume hand pump is included.
- For the list of optional available Accessories please click here.
You can download Saturn SD430 inflatable boat data sheet in PDF format

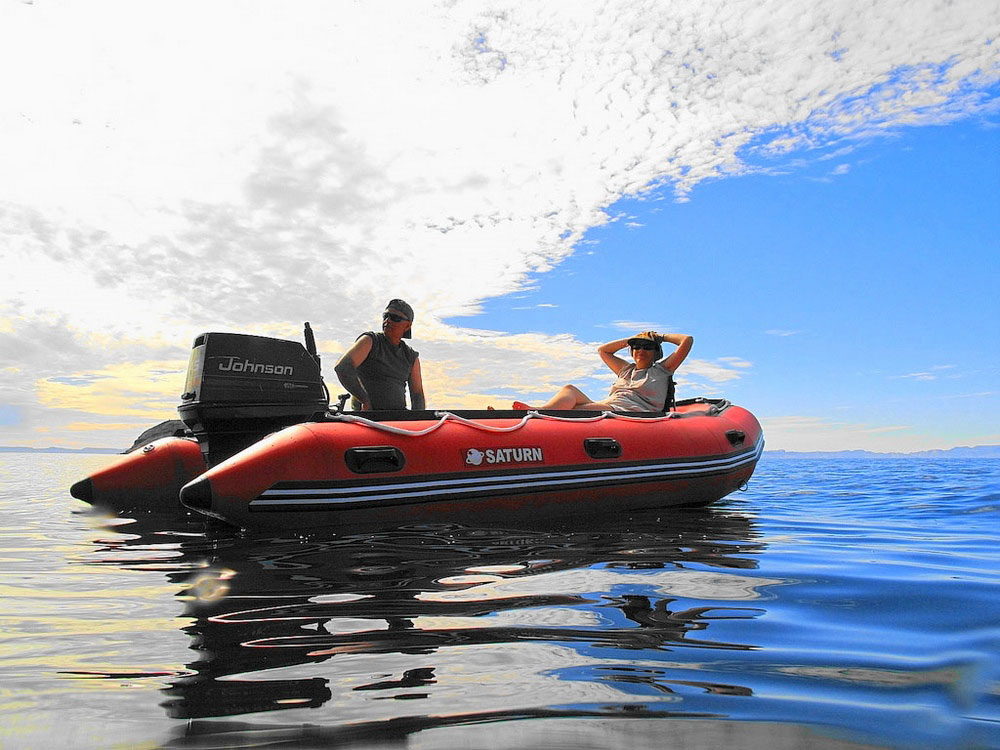

Videos of Saturn SD430 Inflatable Boats in action.
Aluminum Floor Installation Instructions:
- Review Installation Steps: For detailed installation instructions, please refer to the aluminum floor installation guide.
- Inflating Boat Tubes and Keel: Before operating your boat in choppy waters, ensure that the boat tubes and keel are fully inflated to the maximum recommended pressure to prevent damage to the floorboards. For more information on air pressure, please consult this FAQ section. Underinflated tubes and keel can lead to aluminum floor cracking. Please see different FAQ for more info on that.
- Preparing to Install Stringers: When installing the stringers, position the oars beneath the bottom of the boat to elevate the edges of the floorboards off the ground.
- Installing Stringers: Stringers are designed to connect two adjacent main floorboards. Each main floorboard consists of smaller sections that are joined by C-channels at the edges. For optimal alignment, ensure the spaces between adjacent stringers do not line up with the joint lines between the smaller sections of each floorboard.
Quick Tip! Worried about the weight of a hard-floored boat? No need to strain your back! Pick up a foldable hand cart from any retail store to easily transport your folded boat. Even budget-friendly dolly movers work wonders for both folded and fully inflated boats. For extra ease, consider our dinghy dolly wheels—perfect for rolling your inflated boat across the shore and right into the water!
Saturn Inflatable Boats Specifications:
Note: Specifications and accessories are subject to change without notice. Max O/B Motor means: maximum power of outboard motor that can be safely used to plane the boat loaded to the maximum capacity at normal water surface conditions. Please exercise common sense and caution when using maximum motor capacity. Do not jump from wave to wave as new 4-stroke motors are much heavier then 2-stroke and provide extra strain on the transom. Under normal circumstances, with half the maximum persons/load capacity, 50% of maximum O/B power rating may be necessary to put boat on plane.
